Building ProjectDawn with Claude and Codex: An AI-Assisted iOS Devlog Deep Dive


import CoreGraphics
import Data
import Observation

@Observable
public final class HabitDragCoordinator {
    public var draggedHabit: Habit?
    public var dragLocation: CGPoint = .zero
    public var pendingDrop = false

    public var isActive: Bool {
        draggedHabit != nil
    }

    public init() {}

    public func begin(habit: Habit, at location: CGPoint) {
        draggedHabit = habit
        dragLocation = location
        pendingDrop = false
    }

    public func move(to location: CGPoint) {
        dragLocation = location
    }

    public func drop() {
        pendingDrop = true
    }

    public func end() {
        draggedHabit = nil
        dragLocation = .zero
        pendingDrop = false
    }
}



Expand


.onChange(of: dragCoordinator.dragLocation) { _, location in
    guard dragCoordinator.isActive else { return }
    hoveredSlot = slot(for: location)
}
.onChange(of: dragCoordinator.pendingDrop) { _, pendingDrop in
    guard pendingDrop else { return }
    handleDrop()
}
.onChange(of: hoveredSlot) { _, newSlot in
    guard dragCoordinator.isActive, let slot = newSlot, slot != lastHapticSlot else { return }
    hapticSnap()
    lastHapticSlot = slot
}
.sheet(isPresented: .constant(true)) {
    HabitTrayView()
}


Expand


# Phase 4 — Habit Tray: Implementation Plan

## Architectural Decision: New `HabitTray` Module

Create `Modules/HabitTray` (do not expand `DayView`). The reasoning mirrors the Phase 3 decision to split Timeline:

1. **Responsibility**: The tray owns substantial independent state — expanded/collapsed toggle, `@Query` over all `Habit` objects, sort order by frequency, add-habit form presentation. Placing this in `DayView` would make that file responsible for layout orchestration, timeline paging, date navigation, and habit management all at once.

2. **Phase 5 drag coordination**: When drag & drop arrives, `DayView` will thread a `hoveredSlot: Binding<Int?>` between `HabitTrayView` and `DayTimelineView`. This binding already exists on `DayTimelineView` (defaulting to `.constant(nil)`). The boundary is clean: `DayView` owns the shared drag state; `HabitTray` and `Timeline` are consumers. This is the same pattern already planned in Phase 3.

3. **Mac reuse (Phase 9)**: The menu bar popover uses the same `DayView` root. If the tray is a separate module, Phase 9 can tune `HabitTrayView` for the compact 320pt popover width without touching `DayView` or `Timeline`.

4. **Testability**: Frequency-sort logic and hex-to-Color parsing can be unit-tested in `HabitTrayTests` in isolation.

**Dependency chain after Phase 4:**
```
ProjectDawn (app) → DayView → HabitTray → Data
                            → Timeline  → Data
```

---

## Naming Notes

- The module is `HabitTray`; the public entry point view is `HabitTrayView`. No collision risk with SwiftUI system types.
- The add-habit form is `HabitFormView` (internal to `HabitTray`). Phase 7 may promote it if edit needs to be triggered from elsewhere.
- `HabitPillView` is a shared internal component used by both the collapsed and expanded states.
- The color helper is `Color+Hex.swift` — a `Color` extension, internal to the module.

> **Implementation note:** `HabitLibrarySheet` was removed during implementation. The collapsed strip and expanded grid were unified into a single always-on sheet in `HabitTrayView` using `presentationDetents(selection:)`. `DayView` presents it via `.sheet(isPresented: .constant(true))`. `presentationBackgroundInteraction(.enabled(upThrough: collapsedDetent))` allows timeline interaction while the tray is collapsed.

---

## Geometry / Layout Constants

```swift
// HabitTrayLayout.swift (internal enum)
enum HabitTrayLayout {
    static let collapsedHeight: CGFloat = 80   // tray strip height (matches Phase 3 placeholder)
    static let pillHeight: CGFloat      = 44   // capsule height in tray row
    static let pillHPadding: CGFloat    = 12   // horizontal internal padding in pill
    static let pillHSpacing: CGFloat    = 8    // spacing between pills in scroll row
    static let sheetFraction: CGFloat   = 0.7  // presentationDetents(.fraction(0.7))
    static let gridColumns: Int         = 3    // columns in library grid
    static let gridSpacing: CGFloat     = 12
}
```

---

## Step-by-Step Plan

### Step 1 — Scaffold `HabitTray` module manifest
**Commit:** `chore(tuist): scaffold HabitTray module manifest`

- Create `Modules/HabitTray/Project.swift`:

```swift
import ProjectDescription
import ProjectDescriptionHelpers

let project = Project.module(
    name: "HabitTray",
    dependencies: [
        .project(target: "Data", path: "../Data"),
    ]
)
```

- Create the required empty directories: `Modules/HabitTray/Sources/`, `Modules/HabitTray/Resources/`, `Modules/HabitTray/Tests/` (Tuist globs these; they must exist).

---

### Step 2 — Wire into workspace and `DayView`
**Commit:** `chore(tuist): wire HabitTray into workspace and DayView`

- `Workspace.swift` — add `"Modules/HabitTray"` to the `projects` array.
- `Modules/DayView/Project.swift` — add `.project(target: "HabitTray", path: "../HabitTray")` to the `dependencies` array alongside the existing `Timeline` entry.
- Run `tuist generate` to verify the graph resolves cleanly.

---

### Step 3 — `Color+Hex.swift` (internal helper)
**Commit:** (bundled with Step 6)

Every `Habit` stores its color as a hex string (`colorHex: String`). The tray needs `hex → Color` for rendering and `Color → hex` when saving a custom-picked color.

```swift
// Modules/HabitTray/Sources/Color+Hex.swift
import SwiftUI

extension Color {
    /// Parses a 6-digit hex string (with or without leading `#`) into a Color.
    /// Returns `.accentColor` as a safe fallback for malformed input.
    init(hex: String) {
        let hex = hex.trimmingCharacters(in: CharacterSet.alphanumerics.inverted)
        var int: UInt64 = 0
        guard hex.count == 6, Scanner(string: hex).scanHexInt64(&int) else {
            self = .accentColor
            return
        }
        let r = Double((int >> 16) & 0xFF) / 255
        let g = Double((int >> 8)  & 0xFF) / 255
        let b = Double(int         & 0xFF) / 255
        self = Color(red: r, green: g, blue: b)
    }

    /// Converts this Color to a 6-character uppercase hex string.
    /// Returns nil if the color cannot be resolved to RGB components.
    func toHex() -> String? {
#if canImport(UIKit)
        guard let components = UIColor(self).cgColor.components, components.count >= 3 else { return nil }
#elseif canImport(AppKit)
        guard let components = NSColor(self).cgColor.components, components.count >= 3 else { return nil }
#else
        return nil
#endif
        let r = Int(components[0] * 255)
        let g = Int(components[1] * 255)
        let b = Int(components[2] * 255)
        return String(format: "%02X%02X%02X", r, g, b)
    }
}
```

The `#if canImport` guards keep `toHex()` working for both iOS and macOS (Phase 9 menu bar).

---

### Step 4 — `HabitTrayLayout.swift` + `HabitColor.swift` + `HabitPillView.swift` (internal)
**Commit:** `feat(HabitTray): HabitPillView — emoji + name capsule`

```swift
// Modules/HabitTray/Sources/HabitColor.swift
import Foundation

struct HabitColor {
    let name: String
    let hex: String

    static let presets: [HabitColor] = [
        HabitColor(name: "Coral",    hex: "FF6B6B"),
        HabitColor(name: "Peach",    hex: "FF9F43"),
        HabitColor(name: "Sun",      hex: "FECA57"),
        HabitColor(name: "Mint",     hex: "48DBAB"),
        HabitColor(name: "Sky",      hex: "54A0FF"),
        HabitColor(name: "Lavender", hex: "A29BFE"),
        HabitColor(name: "Rose",     hex: "FD79A8"),
        HabitColor(name: "Stone",    hex: "B2BEC3"),
    ]
}
```

```swift
// Modules/HabitTray/Sources/HabitPillView.swift
import SwiftUI
import Data

struct HabitPillView: View {
    let habit: Habit

    private var backgroundColor: Color { Color(hex: habit.colorHex) }

    // Luminance-based contrast: white on dark colors, near-black on light.
    private var foregroundColor: Color {
        let hex = habit.colorHex.trimmingCharacters(in: .init(charactersIn: "#"))
        var int: UInt64 = 0
        Scanner(string: hex).scanHexInt64(&int)
        let r = Double((int >> 16) & 0xFF) / 255
        let g = Double((int >> 8)  & 0xFF) / 255
        let b = Double(int         & 0xFF) / 255
        let luminance = 0.2126 * r + 0.7152 * g + 0.0722 * b
        return luminance > 0.55 ? Color(white: 0.1) : .white
    }

    var body: some View {
        HStack(spacing: 4) {
            Text(habit.emoji)
            Text(habit.name)
                .lineLimit(1)
        }
        .font(.subheadline.weight(.medium))
        .foregroundStyle(foregroundColor)
        .padding(.horizontal, HabitTrayLayout.pillHPadding)
        .frame(height: HabitTrayLayout.pillHeight)
        .background(backgroundColor, in: Capsule())
    }
}
```

The luminance threshold of `0.55` correctly renders dark text on Sun (`#FECA57`) and Stone (`#B2BEC3`), and white text on Coral, Mint, Sky, Lavender, and Rose. It also handles arbitrary `ColorPicker` output.

---

### Step 5 — `ColorSwatchRowView.swift` (internal)
**Commit:** (bundled with Step 6)

```swift
// Modules/HabitTray/Sources/ColorSwatchRowView.swift
import SwiftUI

struct ColorSwatchRowView: View {
    @Binding var selectedHex: String
    @Binding var customColor: Color
    @Binding var useCustomColor: Bool

    var body: some View {
        ScrollView(.horizontal, showsIndicators: false) {
            HStack(spacing: 10) {
                ForEach(HabitColor.presets, id: \.hex) { preset in
                    Circle()
                        .fill(Color(hex: preset.hex))
                        .frame(width: 32, height: 32)
                        .overlay(
                            Circle().strokeBorder(
                                (!useCustomColor && selectedHex == preset.hex)
                                    ? Color.primary : Color.clear,
                                lineWidth: 2.5
                            )
                            .padding(-3)
                        )
                        .onTapGesture {
                            selectedHex = preset.hex
                            useCustomColor = false
                        }
                }

                // System ColorPicker rendered as a circle swatch
                ColorPicker("Custom", selection: $customColor, supportsOpacity: false)
                    .labelsHidden()
                    .frame(width: 32, height: 32)
                    .clipShape(Circle())
                    .overlay(
                        Circle().strokeBorder(
                            useCustomColor ? Color.primary : Color.clear,
                            lineWidth: 2.5
                        )
                        .padding(-3)
                    )
                    .onChange(of: customColor) { _, _ in useCustomColor = true }
            }
            .padding(.vertical, 4)
        }
    }
}
```

The `ColorPicker` is clipped to a circle so it matches the preset swatch row visually. Tapping it opens the system full-spectrum picker. `onChange` automatically switches `useCustomColor = true`.

---

### Step 6 — `HabitFormView.swift` (internal)
**Commit:** `feat(HabitTray): HabitColor + ColorSwatchRowView + HabitFormView`

```swift
// Modules/HabitTray/Sources/HabitFormView.swift
import SwiftUI
import SwiftData
import Data

struct HabitFormView: View {
    @Environment(\.modelContext) private var context
    @Binding var isPresented: Bool

    @State private var name: String = ""
    @State private var emoji: String = "⭐️"
    @State private var selectedColorHex: String = HabitColor.presets[0].hex
    @State private var customColor: Color = .accentColor
    @State private var useCustomColor: Bool = false
    @State private var defaultDuration: Int = 30

    private var isSaveDisabled: Bool { name.trimmingCharacters(in: .whitespaces).isEmpty }

    var body: some View {
        NavigationStack {
            Form {
                Section("Name") {
                    TextField("e.g. Morning Run", text: $name)
                }

                Section("Emoji") {
                    TextField("Emoji", text: $emoji)
                        .onChange(of: emoji) { _, new in
                            // Clamp to first grapheme cluster
                            if let first = new.unicodeScalars.first {
                                emoji = String(first.value > 0xFF ? String(new.prefix(2)) : String(new.prefix(1)))
                            }
                        }
                }

                Section("Color") {
                    ColorSwatchRowView(
                        selectedHex: $selectedColorHex,
                        customColor: $customColor,
                        useCustomColor: $useCustomColor
                    )
                }

                Section("Default Duration") {
                    Picker("Duration", selection: $defaultDuration) {
                        ForEach([15, 30, 45, 60, 90, 120], id: \.self) { mins in
                            Text("\(mins) min").tag(mins)
                        }
                    }
                    .pickerStyle(.wheel)
                    .frame(height: 120)
                }
            }
            .navigationTitle("New Habit")
            .navigationBarTitleDisplayMode(.inline)
            .toolbar {
                ToolbarItem(placement: .cancellationAction) {
                    Button("Cancel") { isPresented = false }
                }
                ToolbarItem(placement: .confirmationAction) {
                    Button("Save") { save() }
                        .disabled(isSaveDisabled)
                }
            }
        }
    }

    private func save() {
        let resolvedHex = useCustomColor
            ? (customColor.toHex() ?? selectedColorHex)
            : selectedColorHex
        let habit = Habit(
            name: name.trimmingCharacters(in: .whitespaces),
            emoji: emoji,
            colorHex: resolvedHex,
            defaultDuration: defaultDuration
        )
        context.insert(habit)
        isPresented = false
    }
}
```

**Emoji field note**: `TextField` allows multi-character input. The `onChange` handler trims to the first grapheme cluster. Most emoji are single scalars > U+00FF; skin-tone variants use sequences, so `prefix(2)` handles those. A dedicated emoji picker grid (Phase 7) will replace this.

---

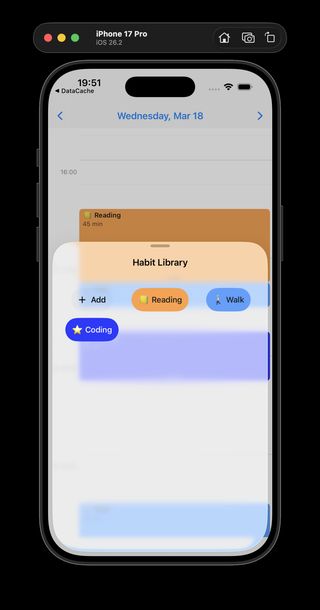

### Step 7 — `HabitLibrarySheet.swift` (internal)
**Commit:** `feat(HabitTray): HabitLibrarySheet — expanded grid of all habits`

```swift
// Modules/HabitTray/Sources/HabitLibrarySheet.swift
import SwiftUI
import SwiftData
import Data

struct HabitLibrarySheet: View {
    @Query private var habits: [Habit]
    @Binding var isPresented: Bool
    let onAddHabit: () -> Void

    private var sortedHabits: [Habit] {
        habits.sorted { $0.instances.count > $1.instances.count }
    }

    private let columns = Array(
        repeating: GridItem(.flexible(), spacing: HabitTrayLayout.gridSpacing),
        count: HabitTrayLayout.gridColumns
    )

    var body: some View {
        NavigationStack {
            ScrollView {
                LazyVGrid(columns: columns, spacing: HabitTrayLayout.gridSpacing) {
                    ForEach(sortedHabits) { habit in
                        HabitPillView(habit: habit)
                            .frame(maxWidth: .infinity)
                    }
                    Button(action: onAddHabit) {
                        Label("Add Habit", systemImage: "plus")
                            .font(.subheadline.weight(.medium))
                            .frame(maxWidth: .infinity)
                            .frame(height: HabitTrayLayout.pillHeight)
                            .background(.secondary.opacity(0.15), in: Capsule())
                    }
                    .buttonStyle(.plain)
                }
                .padding()
            }
            .navigationTitle("Habit Library")
            .navigationBarTitleDisplayMode(.inline)
            .toolbar {
                ToolbarItem(placement: .cancellationAction) {
                    Button("Done") { isPresented = false }
                }
            }
        }
        .presentationDetents([.fraction(HabitTrayLayout.sheetFraction), .large])
        .presentationDragIndicator(.visible)
    }
}
```

Notes:
- `.presentationDetents([.fraction(0.7), .large])` lets the user pull the sheet fully open if they have many habits.
- `.presentationDragIndicator(.visible)` provides a system drag handle — no need to draw a custom one.
- Frequency sort (`instances.count`) is computed in-memory since `@Query` cannot sort on relationship aggregates. Hundreds of habits is the realistic scale — in-memory is negligible.
- The `onAddHabit` closure bubbles up from `HabitTrayView` so form presentation is controlled from one call site.

---

### Step 8 — `HabitTrayView.swift` (public entry point)
**Commit:** `feat(HabitTray): HabitTrayView — collapsed tray, drag-up expansion`

```swift
// Modules/HabitTray/Sources/HabitTrayView.swift
import SwiftUI
import SwiftData
import Data

public struct HabitTrayView: View {
    @Query private var habits: [Habit]
    @State private var showLibrary: Bool = false
    @State private var showAddHabit: Bool = false

    public init() {}

    // Most recently added first — a reasonable proxy until Phase 5 adds usage tracking.
    private var trayHabits: [Habit] {
        habits.sorted { $0.createdAt > $1.createdAt }
    }

    public var body: some View {
        VStack(spacing: 0) {
            // Drag handle
            Capsule()
                .fill(Color.secondary.opacity(0.35))
                .frame(width: 36, height: 4)
                .padding(.top, 8)
                .onTapGesture { showLibrary = true }

            // Horizontal pill scroll row
            ScrollView(.horizontal, showsIndicators: false) {
                HStack(spacing: HabitTrayLayout.pillHSpacing) {
                    ForEach(trayHabits) { habit in
                        HabitPillView(habit: habit)
                    }
                    Button {
                        showAddHabit = true
                    } label: {
                        Label("Add Habit", systemImage: "plus")
                            .font(.subheadline.weight(.medium))
                            .padding(.horizontal, HabitTrayLayout.pillHPadding)
                            .frame(height: HabitTrayLayout.pillHeight)
                            .background(.secondary.opacity(0.15), in: Capsule())
                    }
                    .buttonStyle(.plain)
                }
                .padding(.horizontal)
                .padding(.vertical, 10)
            }
        }
        .frame(height: HabitTrayLayout.collapsedHeight)
        .background(.bar)
        .gesture(
            DragGesture(minimumDistance: 10)
                .onEnded { value in
                    if value.translation.height < -20 {
                        withAnimation(.spring(duration: 0.4)) {
                            showLibrary = true
                        }
                    }
                }
        )
        .sheet(isPresented: $showLibrary) {
            HabitLibrarySheet(isPresented: $showLibrary) {
                showLibrary = false
                showAddHabit = true
            }
        }
        .sheet(isPresented: $showAddHabit) {
            HabitFormView(isPresented: $showAddHabit)
        }
    }
}
```

Key design choices:

- **Drag gesture**: `DragGesture(minimumDistance: 10)` with a negative-Y threshold (`< -20`) triggers the sheet. The horizontal `ScrollView` consumes horizontal gesture vectors first, so the tray's drag gesture only fires on predominantly upward swipes — no conflict.
- **Spring animation**: `.spring(duration: 0.4)` on `showLibrary = true` matches PRD §6.4.
- **Two independent sheets** (`showLibrary`, `showAddHabit`): When the user taps "+ Add Habit" inside the library, `showLibrary = false` runs first, then `showAddHabit = true`. SwiftUI processes these sequentially, avoiding the "sheet presenting over sheet" runtime warning on iOS 17.
- **Separate `@Query` in tray and library**: Both query the same table. SwiftData deduplicates at the persistent store layer. Avoids prop-drilling a potentially large array.

---

### Step 9 — Wire `HabitTrayView` into `DayView`
**Commit:** `feat(DayView): replace tray placeholder with HabitTrayView`

In `Modules/DayView/Sources/DayView.swift`, replace the placeholder:

```swift
// Before:
// Phase 4: HabitTray
Color.secondary.opacity(0.1)
    .frame(height: 80)

// After:
HabitTrayView()
```

Add `import HabitTray` at the top.

In `Modules/DayView/Project.swift`, add the new dependency:

```swift
let project = Project.module(
    name: "DayView",
    dependencies: [
        .project(target: "Data",      path: "../Data"),
        .project(target: "Timeline",  path: "../Timeline"),
        .project(target: "HabitTray", path: "../HabitTray"),
    ]
)
```

The `@modelContainer` is injected at the app entry point (`ProjectDawnApp.swift`), so `HabitTrayView`'s `@Query` and `HabitFormView`'s `@Environment(\.modelContext)` resolve automatically — no changes to `ProjectDawnApp.swift`.

---

## File Summary

| Commit | Files |
|---|---|
| `chore(tuist): scaffold HabitTray module manifest` | `Modules/HabitTray/Project.swift` (new) |
| `chore(tuist): wire HabitTray into workspace and DayView` | `Workspace.swift`, `Modules/DayView/Project.swift` |
| `feat(HabitTray): HabitPillView — emoji + name capsule with luminance contrast` | `Sources/HabitPillView.swift` (new), `Sources/HabitTrayLayout.swift` (new) |
| `feat(HabitTray): HabitColor presets + Color+Hex + ColorSwatchRowView + HabitFormView` | `Sources/HabitColor.swift` (new), `Sources/Color+Hex.swift` (new), `Sources/ColorSwatchRowView.swift` (new), `Sources/HabitFormView.swift` (new) |
| `feat(HabitTray): HabitTrayView — public entry point` | `Sources/HabitTrayView.swift` (new) |
| `feat(DayView): replace tray placeholder with HabitTrayView` | `Modules/DayView/Sources/DayView.swift`, `Modules/DayView/Project.swift` |
| `refactor(HabitTray): merge library sheet into HabitTrayView as a single always-on sheet` | `Sources/HabitTrayView.swift`, `Sources/HabitLibrarySheet.swift` (deleted), `Modules/DayView/Sources/DayView.swift` |

---

## Key Trade-offs

| Decision | Choice | Reason |
|---|---|---|
| Module split | New `HabitTray` module | Single responsibility; isolated unit tests for sort/color logic; Phase 9 Mac reuse |
| Tray sort order | `createdAt` descending | Simple default; Phase 5 replaces with usage-frequency when logging is implemented |
| Frequency sort in library | In-memory sort on `instances.count` | `@Query` cannot sort on relationship aggregates; 100s of habits is the realistic scale — in-memory is negligible |
| Emoji picker | `TextField` clamped to first grapheme | Zero dependencies, good enough for v1; Phase 7 replaces with grid picker during edit-habit work |
| Sheet sequencing (library → add) | Dismiss library first, then present add | Avoids iOS "sheet over sheet" runtime warning; clean UX transition |
| Drag gesture vs handle tap for expansion | Both (drag on strip + tappable handle) | Handle tap is more discoverable; drag is more natural once users know the tray |
| `ColorPicker` integration | System `ColorPicker` as rainbow swatch | Zero custom code for full-spectrum picker; renders as a circle swatch matching the preset row |
| `toHex()` implementation | `UIColor`/`NSColor` bridge with `#if canImport` guard | Required for Mac compatibility; `Color` has no public RGB accessors in SwiftUI |
| Two `@Query` instances (tray + library) | Kept separate | Avoids prop-drilling; SwiftData deduplicates at the persistent store layer |



Expand


# Bug Analysis: Timeline Instance Delete Dismisses Habit Tray

## Root Cause: Presentation Layer Mismatch

The iOS UIKit rule at the heart of this: **a view controller cannot present a new modal if it already has a presented view controller.** If it tries, the existing presented VC is typically dismissed first.

### The presentation stack

```
ProjectDawnApp
 └── DayView  ← the presenting VC
       └── .sheet(.constant(true)) → HabitTrayView  ← the presented VC (tray)
             └── .sheet($showAddHabit) → HabitFormView
```

### Why it breaks

`InstancePillView` lives in `DayTimelineView`, which is part of `DayView`'s content tree — underneath the tray sheet in the UIKit hierarchy. When `.contextMenu` or `.confirmationDialog` fires from `InstancePillView`, UIKit must present the resulting `UIAlertController` (or context menu overlay) **from `DayView`'s VC**.

But `DayView`'s VC is already presenting `HabitTrayView`. UIKit sees a VC trying to present something new while it already has a presented VC, and resolves the conflict by dismissing the tray — which is exactly the symptom.

The `.contextMenu` modifier makes it worse: on iOS, long-pressing content beneath a sheet can cause UIKit to actively dismiss the covering sheet in order to surface the context menu's "peek" of the underlying content. That explains why the tray vanishes *before* the confirmation even appears.

The bug report's conclusion is correct: **the delete confirmation is being launched from the wrong presentation layer.** The confirmation needs to originate from inside the tray sheet (the topmost presented VC), not from the timeline content underneath it.

---

## What Is NOT the Issue

- Not a SwiftData problem — the delete itself would work fine if the UI could present correctly.
- Not specific to `confirmationDialog` vs `alert` — any modal presentation from the timeline subtree hits the same wall, which is why the alternate `alert` approach also failed.
- Not a race condition or timing issue.

---

## Fix Options

### Option 1 — Inline SwiftUI confirmation within the pill

Replace the `.confirmationDialog` with a small "confirm delete?" overlay rendered directly inside `InstancePillView` using `ZStack`/`.overlay`. No UIKit presentation machinery is triggered, so the tray is never disturbed. This is the least invasive fix.

**Tradeoff:** Non-standard UX pattern — users expect a system-level confirmation for destructive actions. Requires custom styling to communicate clearly.

### Option 2 — Present confirmation from inside `HabitTrayView`

`HabitTrayView` sits at the top of the presentation stack, so it can safely present. Communicate the "instance to delete" from `InstancePillView` up to `HabitTrayView` via a shared environment value or coordinator, then let `HabitTrayView` own and present the confirmation dialog.

**Tradeoff:** More wiring — `InstancePillView` needs a way to signal delete intent upward through the view tree without owning the presentation itself.

### Option 3 — Bubble delete intent to `DayView`, present from the tray sheet

Store a `pendingDeleteInstance: HabitInstance?` in a shared coordinator (e.g., `HabitDragCoordinator` or a new `TimelineActionCoordinator`). `InstancePillView` sets it; `HabitTrayView` observes it and presents the confirmation from inside the sheet.

This is structurally similar to Option 2 but uses the existing coordinator pattern from Phase 5 rather than a new binding chain.

**Tradeoff:** Adds responsibility to the coordinator that is conceptually unrelated to drag & drop.

---

## Recommended Fix

**Option 1 (inline confirmation)** is the path of least resistance for Phase 6. The delete action is low-frequency and the pill already has an expanded state (`isExpanded`) — a secondary "confirm?" state within the pill is consistent with that existing pattern and avoids touching the presentation hierarchy at all.

If a system-level confirmation is strongly preferred, **Option 2** is cleaner than Option 3 because it keeps delete logic close to where instances are displayed.



Expand
